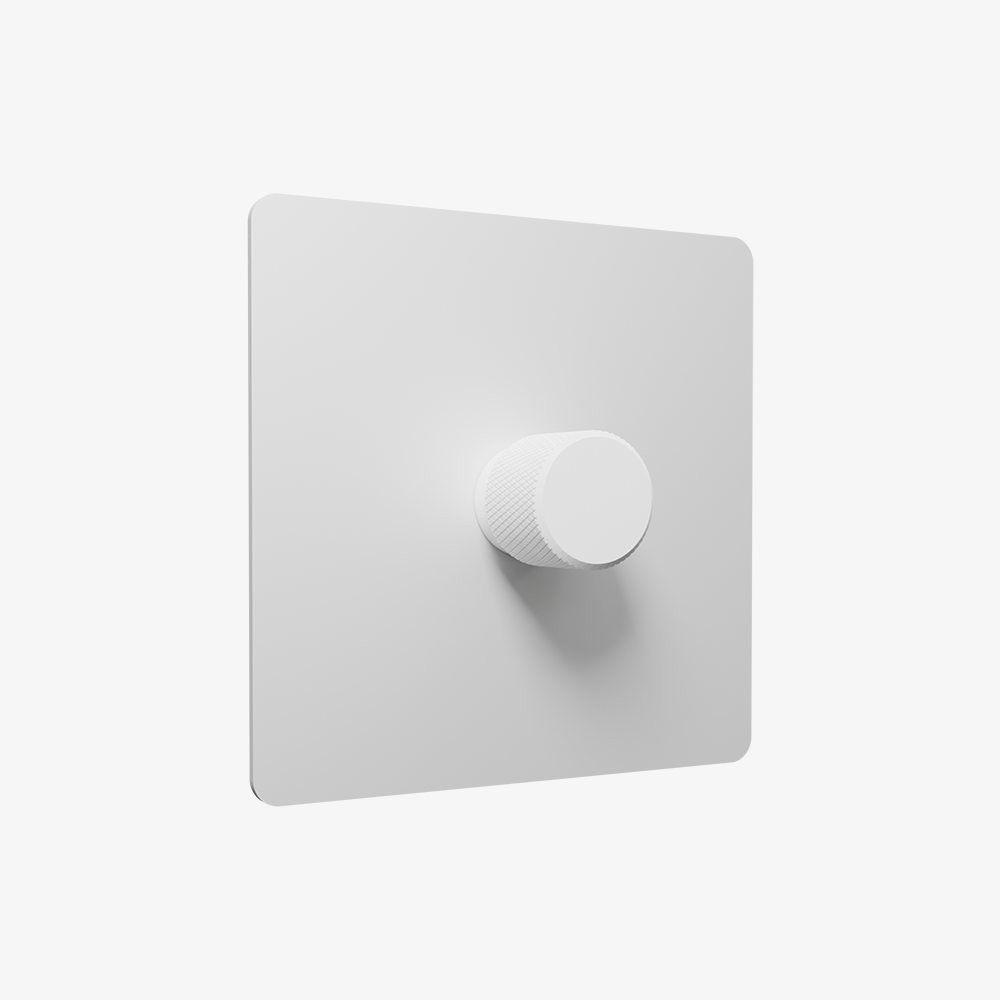

Multiway dimmer - Matt White 1-4 Gang

1 Gang / White

£69.00

Multiway dimmer - Matt White 1-4 Gang

£69.00

Gang 1 Gang 2 Gang 3 Gang 4 Gang

Knob Color White Brass Black Steel

14-Day Returns

Free UK Delivery

5-Year Warranty

A solid steel dimmer switch designed for smooth lighting control in kitchens, bedrooms and living spaces.

Features:
• Solid steel faceplate with V0-rated fire-resistant base
• Smooth, silent dimming
• Compatible with dimmable LED bulbs
• No neutral wire required

Design Details:
Finished in matt white with a precision-knurled dimmer knob, offering a refined tactile feel and a clean architectural appearance.

This product is only suitable for countries where the mains supply is between 220 and 240 volts.

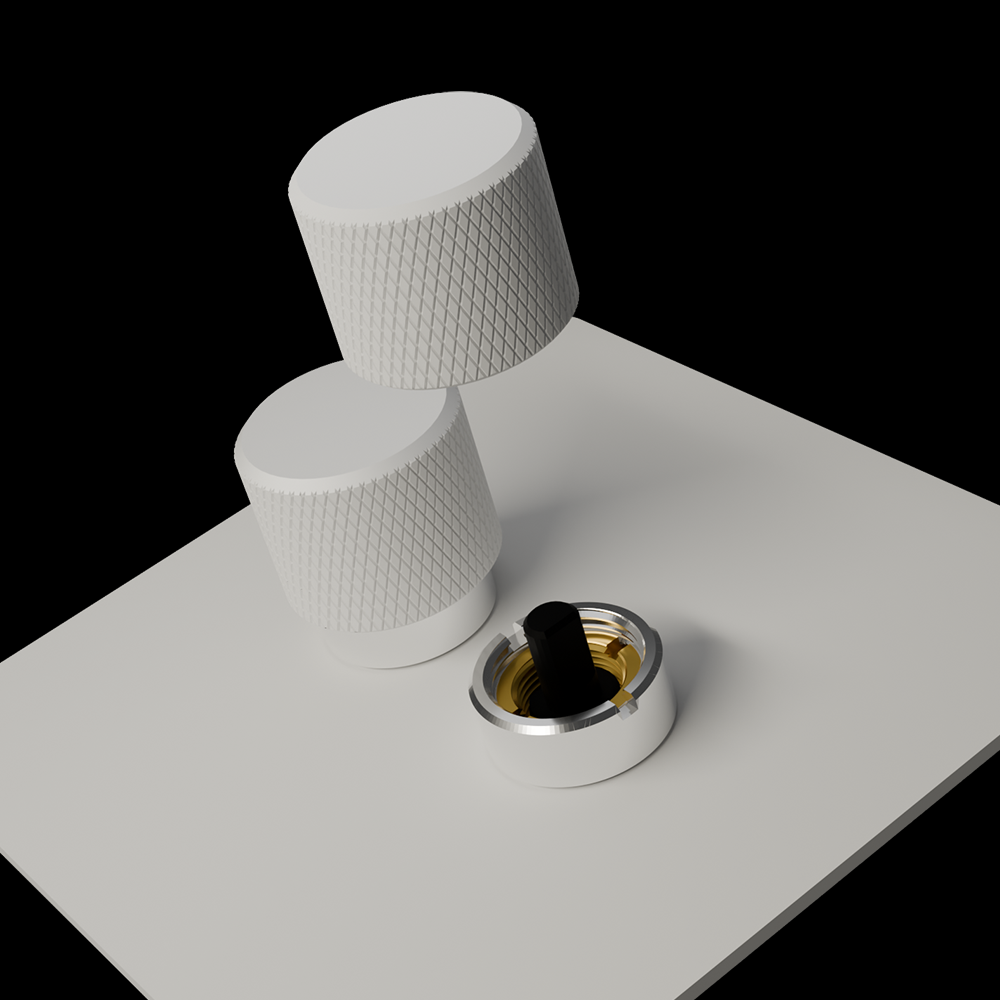

Solid Steel Faceplate
Knurled Control Knob
Mounting Bracket
Dimmer Module
Installation Screws
Electric parameter
User Installation Guide

Manual - MP

Download PDF

UKCA Declaration of Conformity

Download PDF

Frequently Bought Together

Smart Dimmer Switch - Matt White 1-4 Gang

£79.00

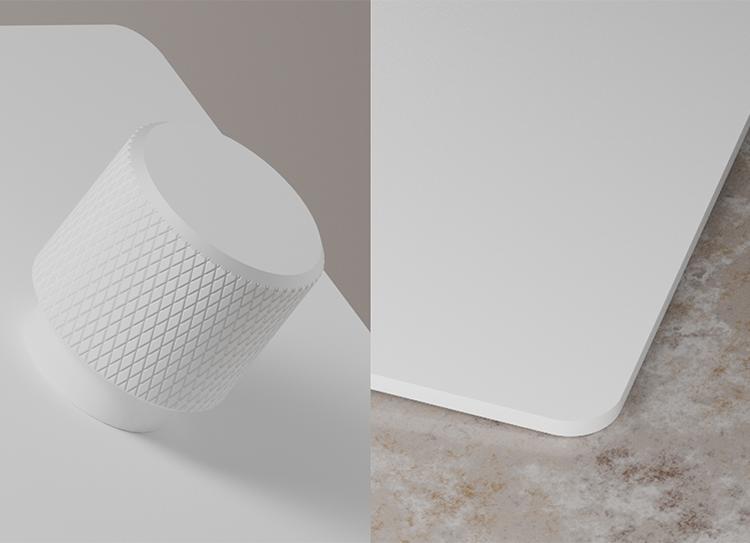

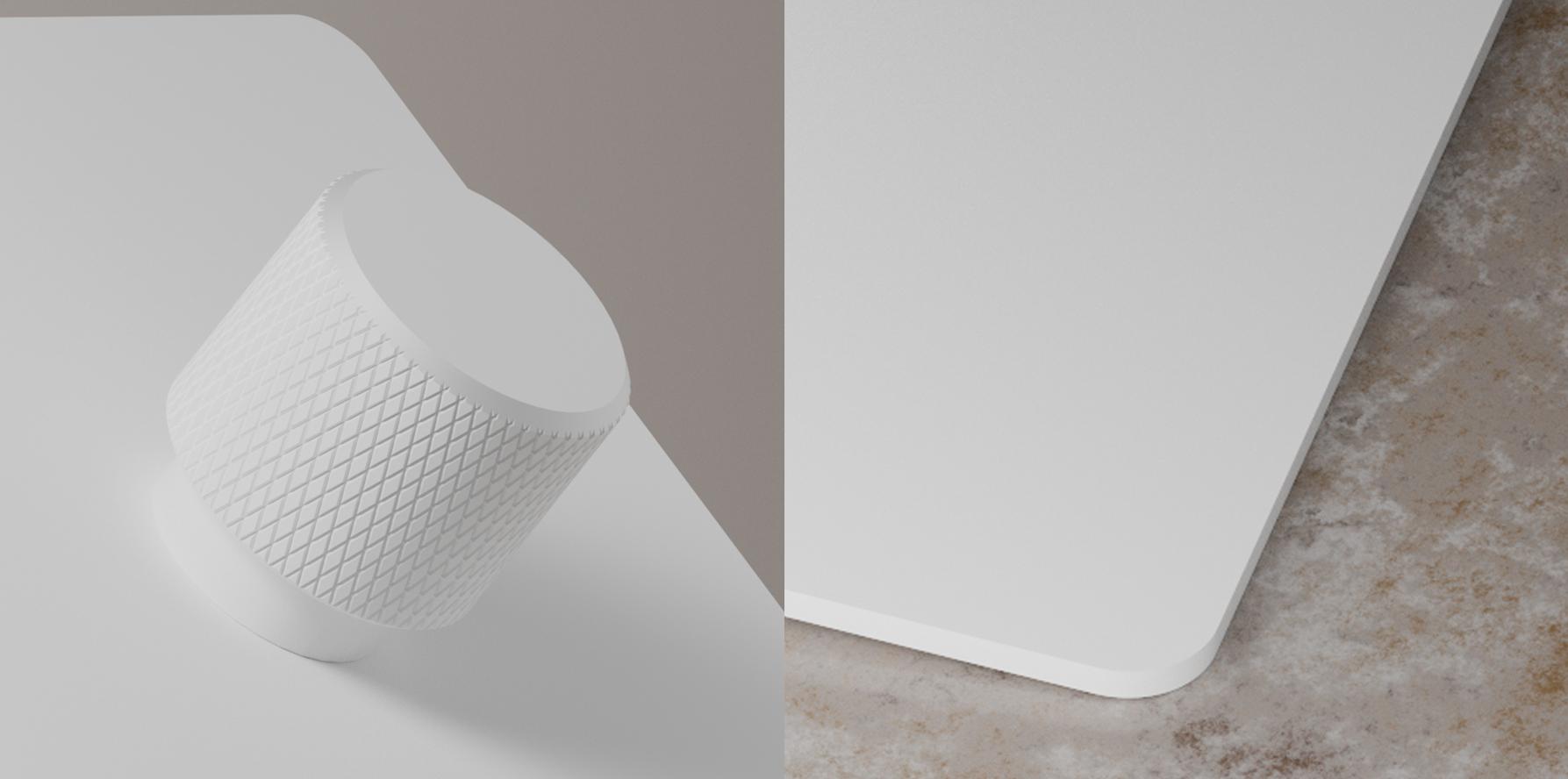

Design to belong

Crafted from a solid steel faceplate and paired with a precision-knurled knob, it brings lasting quality and timeless architectural character to any space.

Engineered for Smooth, Silent Dimming

Powered by a high-speed dimming chipset and precision-tuned MOSFETs, it delivers smooth, silent and flicker-free dimming from 0–100%.

No neutral wire required

Retrofits cleanly into existing UK wiring — no neutral wire, no structural changes, no disruption to your home.

Fits standard UK 25mm back boxes

Compatible with standard 25mm UK back boxes for easy installation

Wide Lighting Compatibility

Compatible with dimmable LED, halogen, incandescent and dimmable CFL bulbs, supporting loads from 5–250W.

6-Layer Safety

Exceeds UKCA requirements; features a V-0 rated flame-retardant base with comprehensive surge and overload protection.

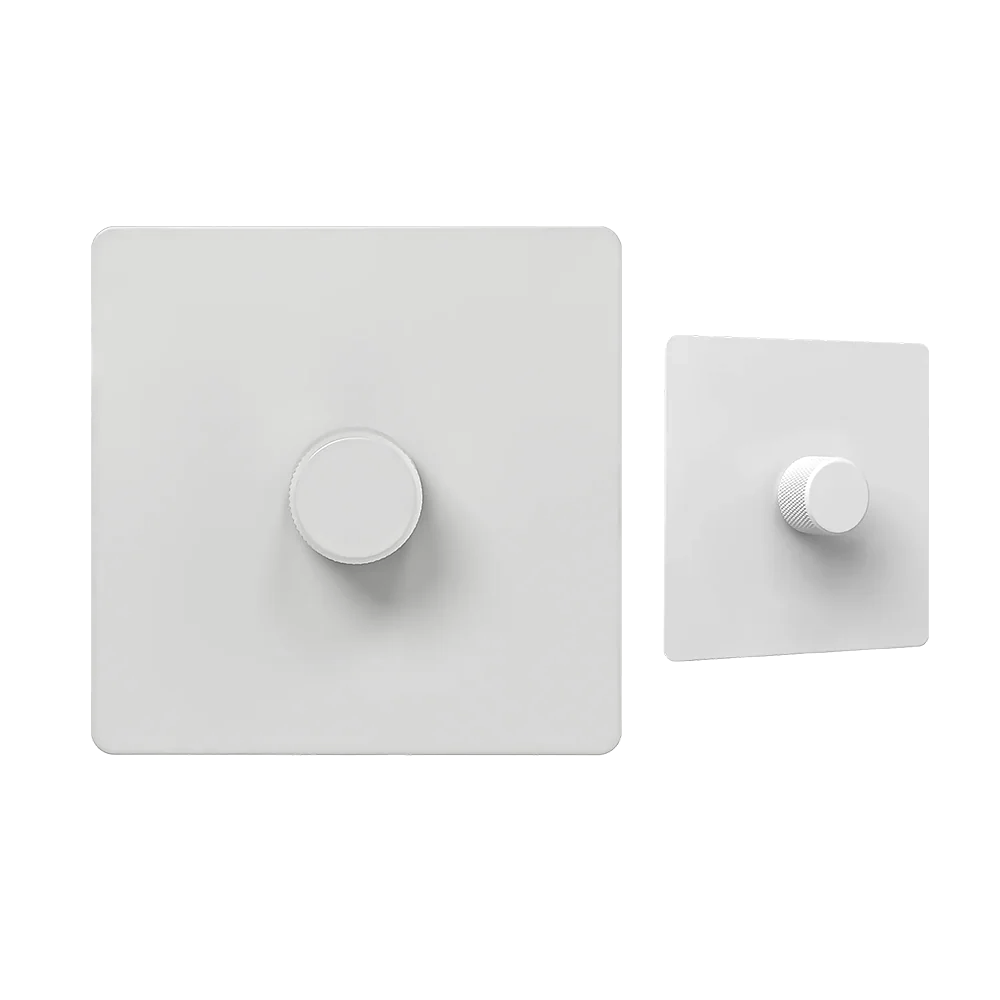

Enables rotary dimming from up to 5 switch locations

Use one Multiway Dimmer with up to four Companion Controllers. Simply replace existing switches with no additional wiring required. Ideally suited for installation in large areas such as corridors and stairwells.

Technical Specifications

Power 220 ~ 240V ac

Faceplate Solid brushed stainless steel

Faceplate size 1-gang:86*86mm 2-gang:86*86mm 3-gang:86*146mm 4-gang:86*146mm

Load type Halogen, Incandescent, Dimmable LED, Dimmable CFL Wattage: 5-250W

Grid compatibility MK, BG, DETA, Hager, Hamilton, Crabtree, Schneider, Schneider-lisse, Wandsworth

Wall box depth ≥25mm

Wiring No neutral required

Module Material PC (recycled plastic)

Dimming method Trailing edge & leading edge

More Highlights

Max. brightness

Automatic maximum brightness adjustment to prevent flickering.

Min. brightness

Programmable minimum brightness to prevent flickering.

Soft start

Gently start your lights to prevent them from being impacted.

Boost mode：

Boost the lights that don't illuminate when turned on at a lower level.

Eco-friendly:

The module is made from high-quality recyclable plastic.

Brightness memory:

Automatically restores your last used brightness level.

Frequently Asked Questions

Can I choose between leading edge and trailing edge dimming?

Yes – both options are supported. Trailing edge (default) is recommended for most LEDs, while leading edge may be better for some halogens or older LED bulbs.

Can I adjust the brightness range for my bulbs?

Yes – you can set custom minimum and maximum brightness levels to avoid flicker and tailor dimming to your bulbs.

What type of bulbs are supported?

The dimmers are designed for high-quality dimmable LED bulbs or halogen lamps. Minimum load is 5W per lamp, with a total minimum of 5W per circuit.

Do I need a neutral wire?

No – Repenic are designed for UK homes and work without a neutral wire. This means they can be installed as a direct replacement for your existing wall switch in older properties as well as modern homes.

What should the depth of the installation box be?

It should be at least 25mm.

Can I install more than one dimmer in the same circuit?

Yes, you can install up to 5 of these dimmers in the same circuit, allowing you to control the lights on the same circuit from multiple different locations, with each dimmer featuring on, off, and dimming functions.

This dimmer can also be connected to our smart dimmer to form 2-way/3-way control, with one smart dimmer connecting to a maximum of 2 of these dimmers.

Do I need to regularly maintain my brass faceplate?

No need. Our brass plates have a protective coating on the surface that effectively prevents oxidation and fading, so almost no special daily care is required.

How many lights can I connect to a dimmer?

There is no limit on the number of lights controlled by the dimmer. As long as the total wattage of all lights controlled by this dimmer adds up to less than 250W. Due to certain errors in the nominal wattage of lights, we recommend that the total wattage of the lights be preferably below 230W.

Can it be installed in a bathroom?

Yes, but only if it meets the required safety standards and is placed in the right zone.

Click here to get more details.
