Add smart control and synchronised dimming.

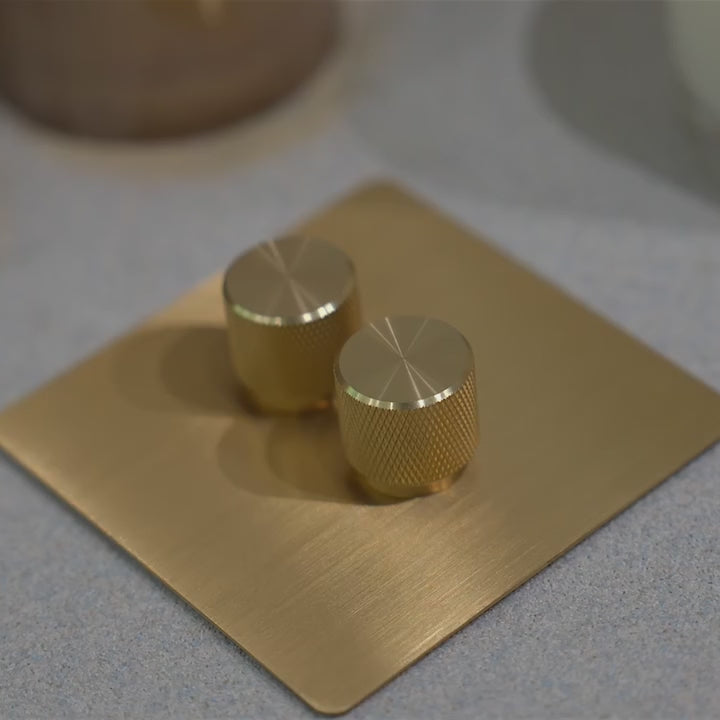

Genuine solid brass gives the faceplate a substantial feel, natural depth and lasting character.
A precisely textured grip for smooth, confident adjustment every time you dim.
No visible fixings—just a clean, restrained profile designed for considered interiors.
Control and dim the same lighting circuit from up to five positions, with full rotary adjustment available at every control point. No conventional intermediate switches are required—ideal for staircases, hallways and large rooms with multiple entrances.
Press to switch. Turn to dim smoothly from 0–100%, with selectable leading- and trailing-edge modes.
Designed for straightforward upgrades in UK homes, with no neutral wire or deeper back box required. The compact module fits a standard UK 25mm back box.
Automatically restores your last used brightness level.
Boost the lights that don't illuminate when turned on at a lower level.
Gently start your lights to prevent them from being impacted.
Automatic maximum brightness adjustment to prevent flickering.
Programmable minimum brightness to prevent flickering.
Yes, you can install up to 5 of these dimmers in the same circuit, allowing you to control the lights on the same circuit from multiple different locations, with each dimmer featuring on, off, and dimming functions.
This dimmer can also be connected to our smart dimmer to form 2-way/3-way control, with one smart dimmer connecting to a maximum of 2 of these dimmers.
No – Repenic are designed for UK homes and work without a neutral wire. This means they can be installed as a direct replacement for your existing wall switch in older properties as well as modern homes.
The dimmer supports compatible dimmable LED, halogen and incandescent lamps. For a single dimmer, LED loads are rated at 5–250W for resistive or capacitive loads and 5–100W for resistive or inductive loads. Halogen and incandescent loads are rated at 5–250W. Lower maximum loads apply to multi-gang installations.
Yes – both options are supported. Trailing edge (default) is recommended for most LEDs, while leading edge may be better for some halogens or older LED bulbs.
Yes. The minimum brightness level can be adjusted to suit the connected lighting and help reduce flickering or sudden cut-off at low levels. The dimmer also automatically adjusts the maximum brightness to help maintain stable dimming.
There is no limit on the number of lights controlled by the dimmer. As long as the total wattage of all lights controlled by this dimmer adds up to less than 250W. Due to certain errors in the nominal wattage of lights, we recommend that the total wattage of the lights be preferably below 230W.
It should be at least 25mm.
Yes, but only if it meets the required safety standards and is placed in the right zone.
